Optimized design technology with CFD hydrodynamic field analysis ensures high efficiency
The static seal between the suction section, middle section and discharge section of the pump is made of metal seal and double O-ring seal, and the pump shaft seal uses high-performance hemp packing or mechanical seal, which is safe and reliable.
Various types of pumps are available. They are suitable for most occasions.
The rotor goes through two balancing processes: static and dynamic, the rotor runout is strictly controlled, the pump operates stably, and vibration is low.
The shaft is made of high quality carbon steel, alloy steel or stainless steel using multi-stage heat treatment, has high rigidity and good stability.
The unique shaft shoulder positioning design is adopted, which ensures more reliable positioning of the impeller and safer operation.
The suction and discharge sections of the pump are made from high quality castings or forgings, which ensures reliable operation of the product while ensuring hydraulic efficiency.
Applications

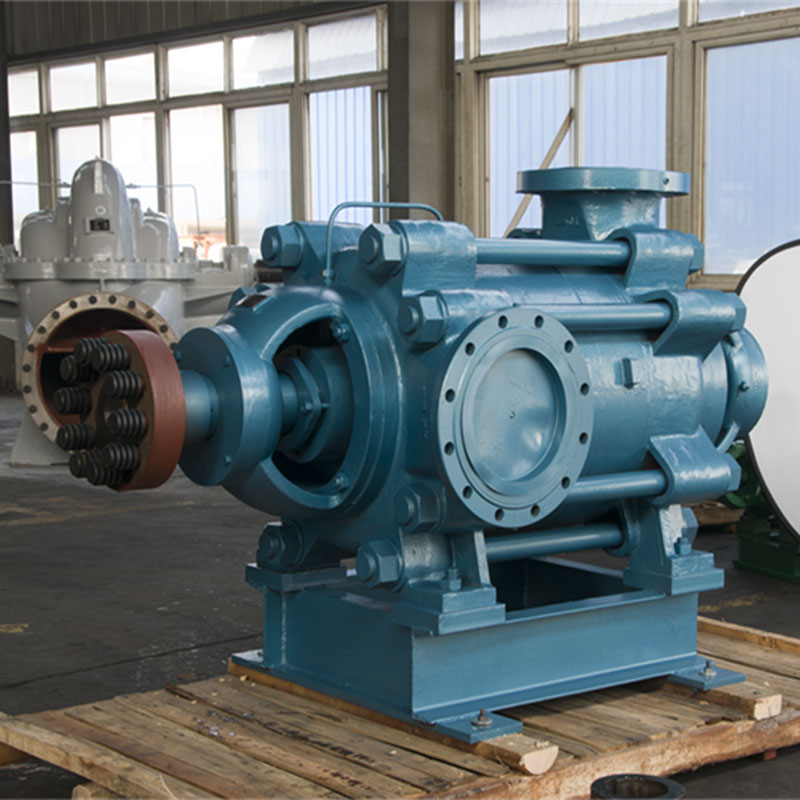

Horizontal multistage centrifugal pump D, wear-resistant multistage centrifugal pump for coal mines MD and corrosion-resistant multistage centrifugal pump DF. Using advanced technology and design, D/MD/DF have many advantages. They can be used in a wide variety of areas.
Operating Parameters
◆ Rotation speed: 2960 rpm
◆ Flow: 3.75–1200 m³/h
◆ Head: 50–1550 m
◆ Liquid temperature: 0–80°C
DN15–DN800; PN16–PN100, Class150–Class600; cryogenic steels LF2, 304,316; operating temperature -196℃…+80℃; extended anti-freeze rod, flanged/welded connection.
