Productivity
Hydraulic components designed using CFD hydrodynamic field analysis technology
Dimensional accuracy
The impeller and guide vane are made of precision casting, smooth flow channel and high dimensional accuracy
Rotor is dynamically balanced, accuracy level is above industry average
Standards
Medium and low pressure feed pump DG complies with GB/T 5657-1995 standard
ZDG high temperature feed pump and sub-high and high pressure DG feed pump comply with GB/T 5656-1995 standard
DG high pressure feed pump meets JB/T8059-200X standard
Applications

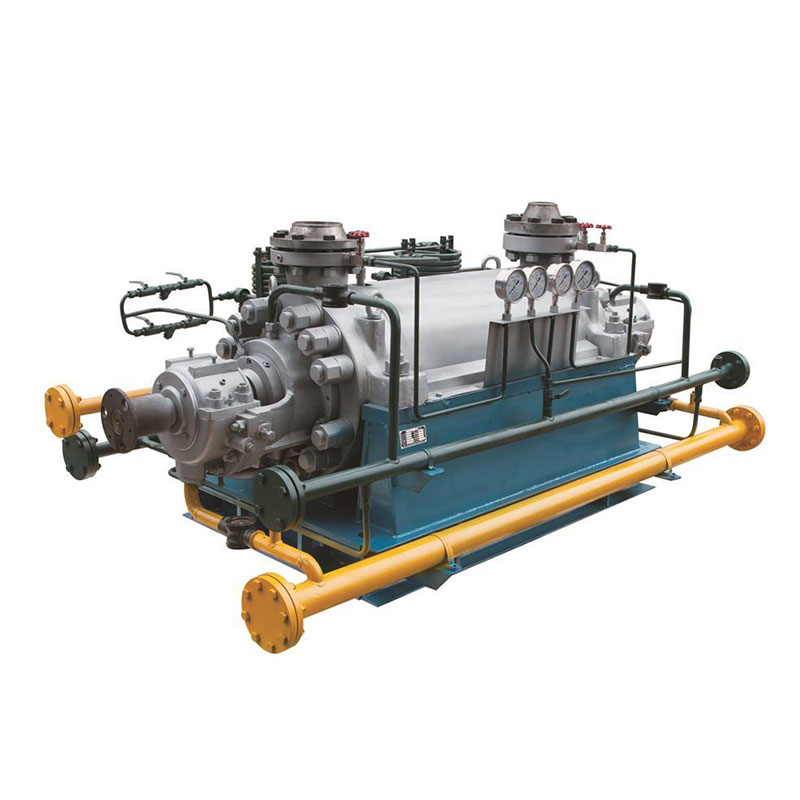

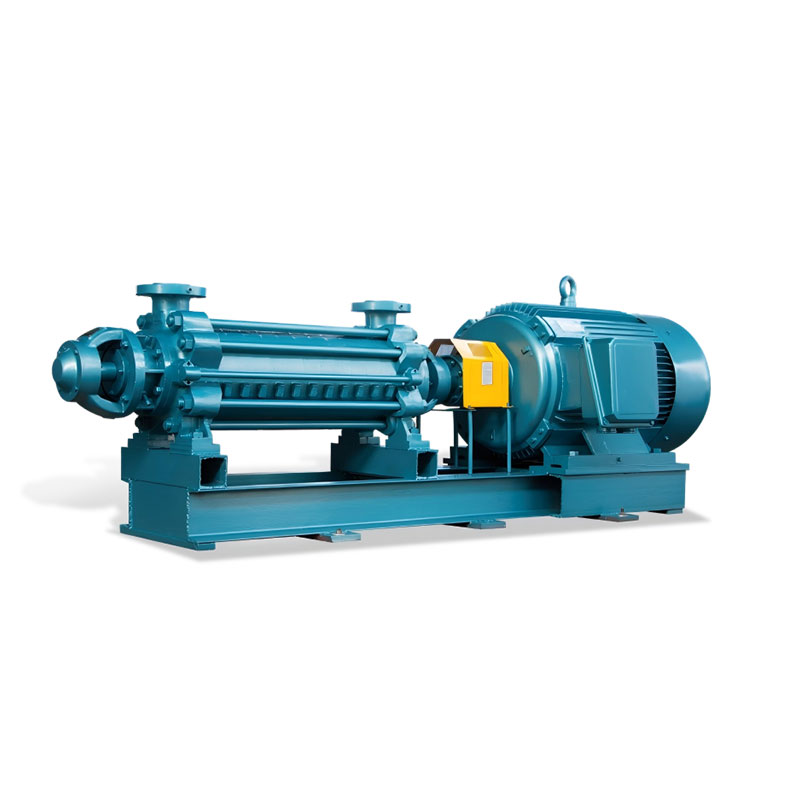

The DG series segmental multistage centrifugal pumps use tension pins to connect the suction section, intermediate sections and discharge section into a single unit. Used to power boilers and pump other high-temperature clean waters. This series includes many different types of products and therefore has a wide range of applications. In addition, it has better performance and higher efficiency than the average level.
Operating Parameters
◆ Flow: medium and low pressure feed pump DG: 4–185 m³/h
◆ High temperature feed pump ZDG: sub-high and high pressure feed pump DG: 12–500 m³/h
◆ Liquid temperature: for medium and low pressure pump type DG: ≤105°C
◆ ZDG high temperature feed pump: for DG type sub-high and high pressure pump: ≤160°C
◆ Head: medium and low pressure feed pump DG: 50–600 m
◆ ZDG high temperature feed pump: 100–600 m; sub-high and high pressure feed pump DG: 550–1980 m
◆ Rotation speed: 2960 rpm
